S-DEEP™

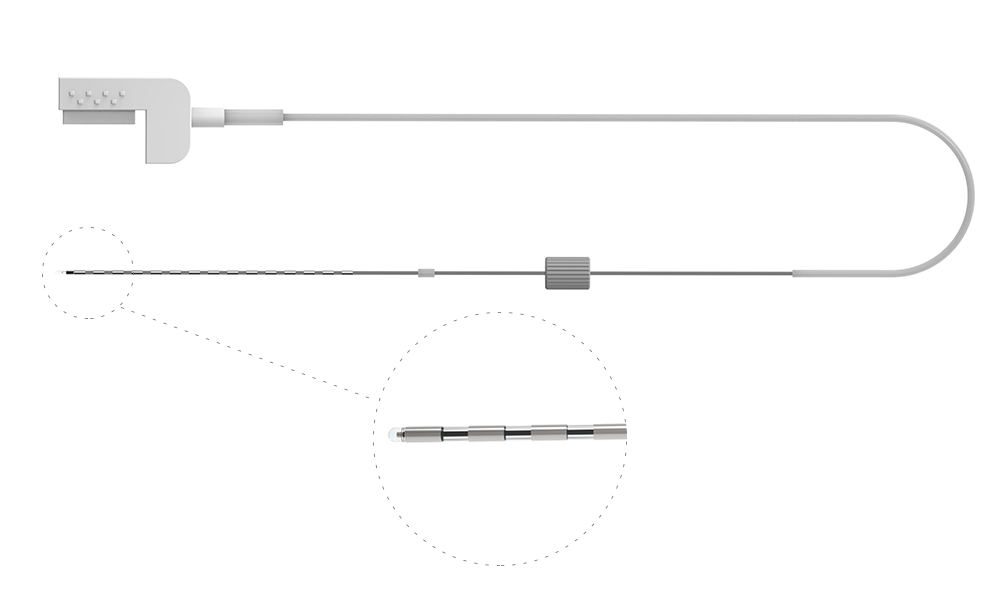

Intracranial Depth Electrode
National Medical Device Registration No. 20253071815
Zhehang Medical Equipment No. 20250324
MRI-compatible material
Anti-interference structure design
Platinum-iridium alloy contacts for low impedance and high signal acquisition accuracy
Electrode rigidity upgrade for safe and accurate implantation
Rounded internal corners of bolt cap for durability and increased reliability

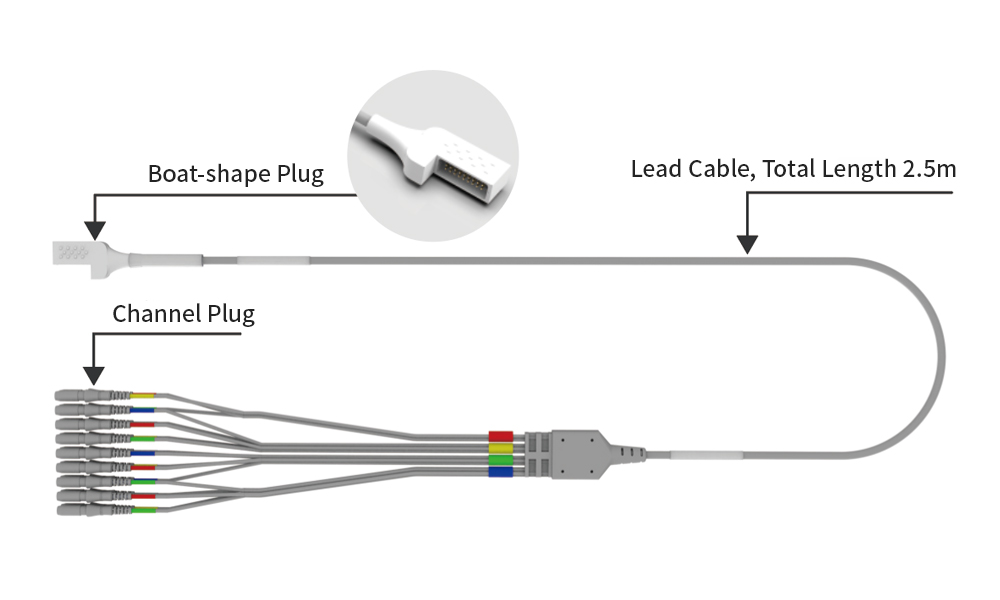

L-shape connector + boat-shape plug for dual anti-drop protection
Sealing plug design for cerebrospinal fluid loss prevention
| Model | SDE-08P | SDE-10P | SDE-12P | SDE-14P | SDE-16P | SDE-18P |
|---|---|---|---|---|---|---|
| Number of Contacts | 8 | 10 | 12 | 14 | 16 | 18 |
| Total Lenghth (mm) | 27.5 | 34.5 | 41.5 | 48.5 | 55.5 | 62.5 |

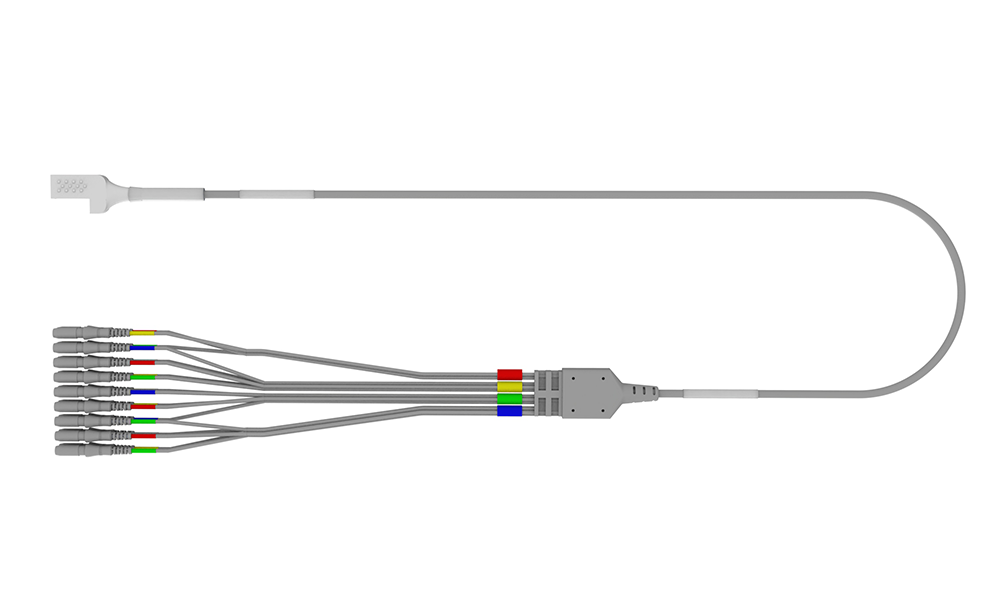

Lightweight Cable Material
Double Anti-slip Structure
Single Model 18 Channels
Copper Pin Header, Durable and Unbending
